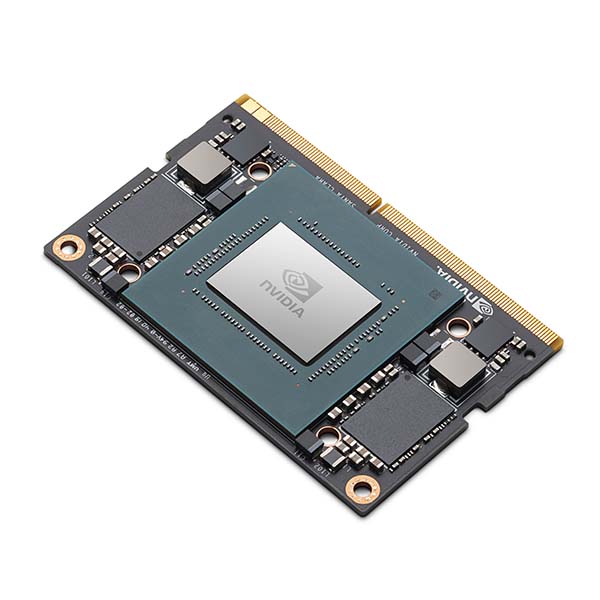

Jetson Xavier NX Series

Jetson Xavier NX brings up to 21 TOPs of accelerated AI computing to the edge in a small form-factor module. It can run multiple modern neural networks in parallel and process data from multiple high-resolution sensors—a requirement for full AI systems. Jetson Xavier NX is production-ready and supports all popular AI frameworks.

Technical specifications

Specification	Jetson Xavier NX 16GB	Jetson Xavier NX
AI performance	21 TOPS	21 TOPS
GPU	384-core NVIDIA Volta GPU with 48 Tensor Cores	384-core NVIDIA Volta GPU with 48 Tensor Cores
CPU	6-core NVIDIA Carmel Armv8.2 64-bit, 6 MB L2 + 4 MB L3	6-core NVIDIA Carmel Armv8.2 64-bit, 6 MB L2 + 4 MB L3
Memory	16 GB 128-bit LPDDR4x, 59.7 GB/s	8 GB 128-bit LPDDR4x, 59.7 GB/s
Storage	16 GB eMMC 5.1	16 GB eMMC 5.1
Power	10 W / 15 W / 20 W	10 W / 15 W / 20 W
Connector	260-pin SO-DIMM	260-pin SO-DIMM
Dimensions	69.6 mm x 45 mm	69.6 mm x 45 mm

Source: NVIDIA – Jetson Xavier NX
